Top hat rail adapter

Top hat rail adapter
GA 2



GRAU TOP HAT RAIL ADAPTER GA 2

for the quick mounting of assemblies and devices on 35 mm DIN top hat rails

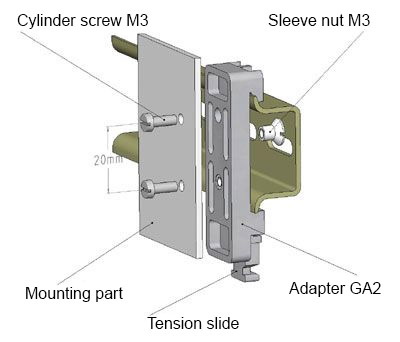

Top hat rail adapter GA 2 - M3

GA2 - M3

The mounting part is fixed to the adapter using two M3 screws and the corresponding sleeve nuts.

The mounting part is then clipped onto the top hat rails.

The tension can be relaxed again by moving the tension slide.

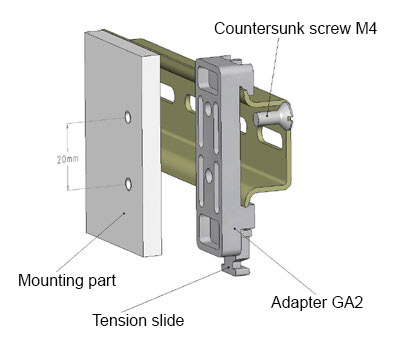

Top hat rail adapter GA 2 - M4

GA2 - M4

The assembly is screwed directly onto the adapter using two M4 countersunk screws.

Properties:

  • versatile 20 mm mounting hole interval
  • material: PA6.6GF30 (fibreglass reinforced polyamide)
  • heat-resistant up to 160 °C
  • highly vibration-proof
